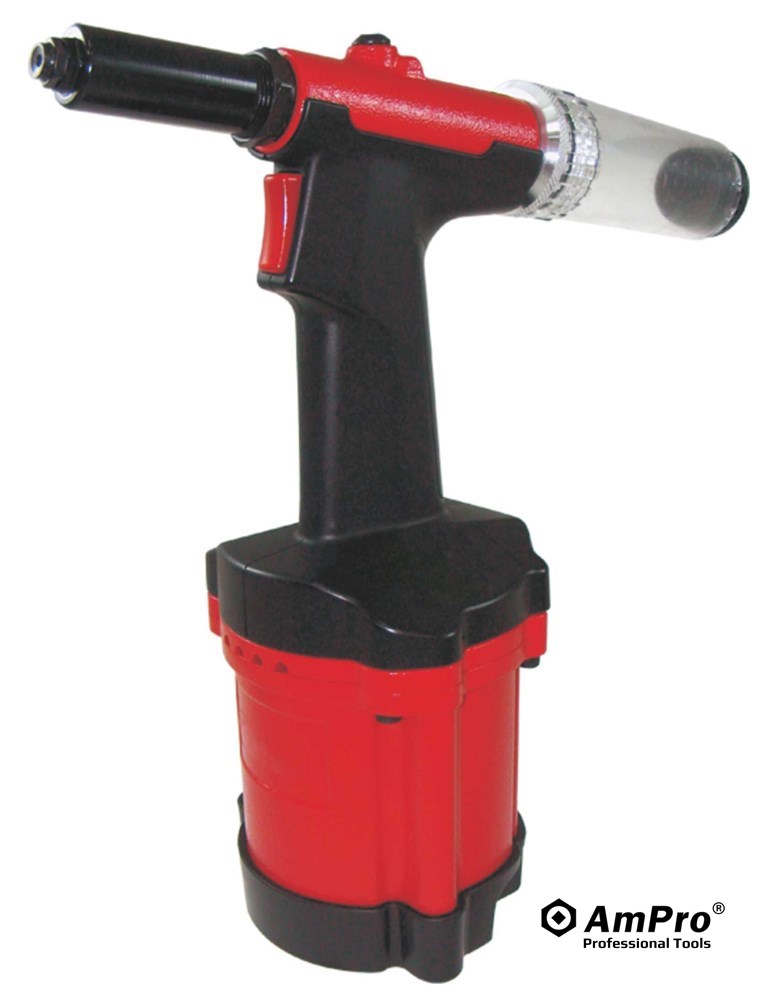

1/4" AIR HYDRAULIC RIVETER
Model: A3697
Model #
A3697 1/4" AIR HYDRAULIC RIVETER
/Quotation/AddToQuote?productModelNo=A3697
Description 1/4" AIR HYDRAULIC RIVETER
Features . FEATURES WITH THE MOST ADVANCED PATENTED DIGITAL MODULE TO ENABLE OPERATORS KNOW THE RIVET TOOL SETTING CAPACITY INSTANTLY UNDER VARIOUS AIR SUPPLY CONDITION AND THE RIVET SETTING CYCLES PERFORMED DURING THEIR WORKING PERIOD. . IT WILL ALSO REMIND OPERATORS WHEN TO DO SERVICE OR MAINTENANCE TO THE TOOL IN PROPER INTERVAL. . IT WILL HELP TO CEASE THE CONTROVERSY ABOUT WARRANTY ISSUE ESPECIALLY IF THE TOOL HAS BEEN MISUSED OR ABUSED WITH ABNORMAL HIGH AIR PRESSURE WHICH EXCEEDS THE DESIGN SPECIFICATION. . BUILT WITH PATENTED "MODULE UNITS ASSEMBLED IN COMPOSITE CLAM SHELL HOUSING" FOR THE EASE OF TOOL SERVICE. . PATENTED "BROKEN MANDREL VACUUM COLLECTION SYSTEM" FOR THE CLEANLINESS AND SAFETY OF WORK AREA. . FORGED AND HEAT TREATED ALUMINUM ALLOY MADE HYDRAULIC SECTION FOR THE BEST RIGIDITY. . EASY ADJUSTABLE HEAD & NUT DESIGNED FOR OBTAINING THE MOST EFFECTIVE STROKE. . ERGONOMIC TEXTURE COATED COMPOSITE HOUSING FOR OPERATOR'S COMFORT. . SWIVEL AIR INLET DESIGN FOR MANEUVERABILITY WORKS.
Category AIR HYDRAULIC RIVETERS
Specification
TRACTION POWER IBF(KGF) 4400(2000) STROKE LENGTH MM 21 NET WEIGHT LBS(KGS) 5.6(2.5) OPERATING AIR PRESSURE PSI(BAR) 90(6.2) AIR INLET SIZE INCH-NPT/PT 1/4 MIN. HOSE SIZE INCH(MM) 3/8(10) NOSEPIECES EQUIPPED INCH(MM) 3/16(4.8)1/4(6.4)MONOBOLT 3/16(4.8)1/4(6.4)
