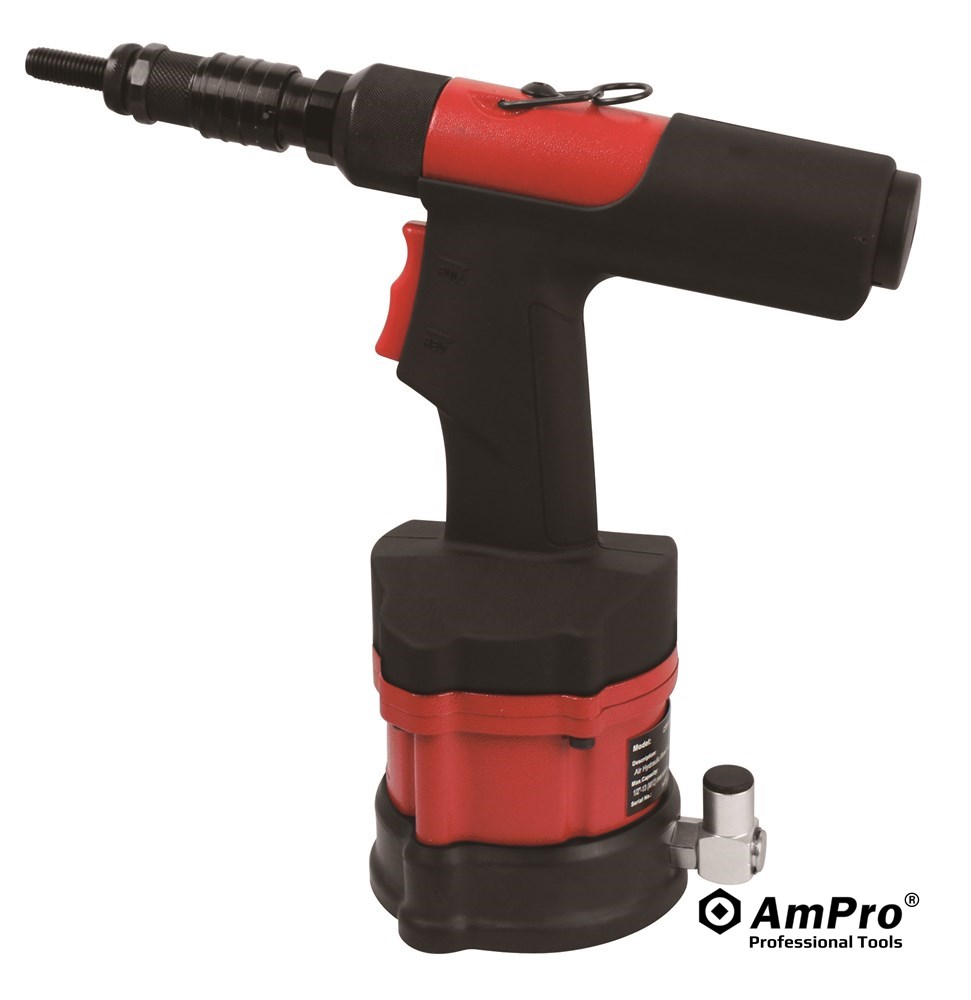

AIR HYDRAULIC RIVETER NUT TOOL / RIVET STUD TOOL
Model: A3699
Model #
A3699 AIR HYDRAULIC RIVETER NUT TOOL / RIVET STUD TOOL
/Quotation/AddToQuote?productModelNo=A3699
Description AIR HYDRAULIC RIVETER NUT TOOL / RIVET STUD TOOL
Features . FEATURES WITH THE MOST ADVANCED PATENTED DIGITAL MODULE TO ENABLE OPERATORS KNOW THE RIVET TOOL SETTING CAPACITY INSTANTLY UNDER VARIOUS AIR SUPPLY CONDITION AND THE RIVET SETTING CYCLES PERFORMED DURING THEIR WORKING PERIOD. . IT WILL ALSO REMIND OPERATORS WHEN TO DO SERVICE OR MAINTENANCE TO THE TOOL IN PROPER INTERVAL. . IT WILL HELP TO CEASE THE CONTROVERSY ABOUT WARRANTY ISSUE ESPECIALLY IF THE TOOL HAS BEEN MISUSED OR ABUSED WITH ABNORMAL HIGH AIR PRESSURE WHICH EXCEEDS THE DESIGN SPECIFICATION. . BUILT WITH PATENTED "MODULE UNITS ASSEMBLED IN COMPOSITE CLAM SHELL HOUSING" FOR THE EASE OF TOOL SERVICE. . FORGED AND HEAT TREATED ALUMINUM ALLOY MADE HYDRAULIC SECTION FOR THE BEST RIGIDITY. . EASY ADJUSTABLE HEAD & NUT DESIGNED FOR OBTAINING THE MOST EFFECTIVE STROKE. . ERGONOMIC TEXTURE COATED COMPOSITE HOUSING FOR OPERATOR'S COMFORT. . SWIVEL AIR INLET DESIGN FOR MANEUVERABILITY WORKS.
Category AIR HYDRAULIC RIVETERS
Specification
TRACTION POWER IBF(KGF) 3500(1600) STROKE LENGTH MM 6 NET WEIGHT LBS(KGS) 4.9(2.2) RIVET NUT / RIVET STUD SETTING CAPACITY M4~M10 RIVET NUT IN HEX./STEEL M12 NEED 100PSI/7 BAR OPERATING PRESSURE
