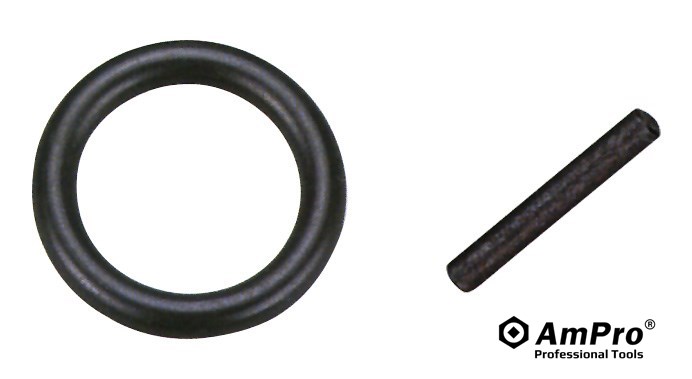

IMPACT SOCKET PIN & O-RING
Model: A4780-A4783,A4785,A4787-A4788,A4791,A4793
Model #
A4780 3/8" DR. 6-12MM IMPACT SOCKET PIN & O-RING
/Quotation/AddToQuote?productModelNo=A4780
A4781 3/8" DR. 13-22MM IMPACT SOCKET PIN & O-RING
/Quotation/AddToQuote?productModelNo=A4781
A4782 1/2" DR. 8-14MM IMPACT SOCKET PIN & O-RING
/Quotation/AddToQuote?productModelNo=A4782
A4783 1/2" DR. 15-32MM IMPACT SOCKET PIN & O-RING
/Quotation/AddToQuote?productModelNo=A4783
A4785 3/4" DR. 17-49MM IMPACT SOCKET PIN & O-RING
/Quotation/AddToQuote?productModelNo=A4785
A4787 3/4" DR. 50-70MM IMPACT SOCKET PIN & O-RING
/Quotation/AddToQuote?productModelNo=A4787
A4788 1" DR. 17-70MM IMPACT SOCKET PIN & O-RING
/Quotation/AddToQuote?productModelNo=A4788
A4791 1" DR. 73-90MM IMPACT SOCKET PIN & O-RING
/Quotation/AddToQuote?productModelNo=A4791
A4793 1-1/2" DR. 30-90MM IMPACT SOCKET PIN & O-RING
/Quotation/AddToQuote?productModelNo=A4793
Description IMPACT SOCKET PIN & O-RING
Features
Category IMPACT SOCKET ACCESSORIES
Specification
Model Driv Size(mm) O ring thickness(mm) O ring inner diameter(mm) Pin thickness(mm) Length(mm)
A4780 3/8" 6 - 12 (5/16" - 7/16" ) 3.5 13 2.5 14
A4781 3/8" 13 - 22 (1/2" - 7/8") 3.5 16 2.5 16
A4782 1/2" 8 - 14 (5/16" - 9/16") 4 19 3 20
A4783 1/2" 15 - 32 (5/8" - 1-1/4") 4 24 3 25
A4785 3/4" 17 - 49 (11/16" - 1-15/16") 5 36 4 35
A4787 3/4" 50 - 70 (2" - 2-3/4") 5 45 4 45
A4788 1" 17 - 70 (11/16" - 2-3/4") 7 42 5 45
A4791 1" 73 - 90 (2-13/16" - 3-3/4") 7 75 5 75
A4793 1-1/2" 30 - 90 (1-13/16" - 3-3/4" ) 10 75 6 75
