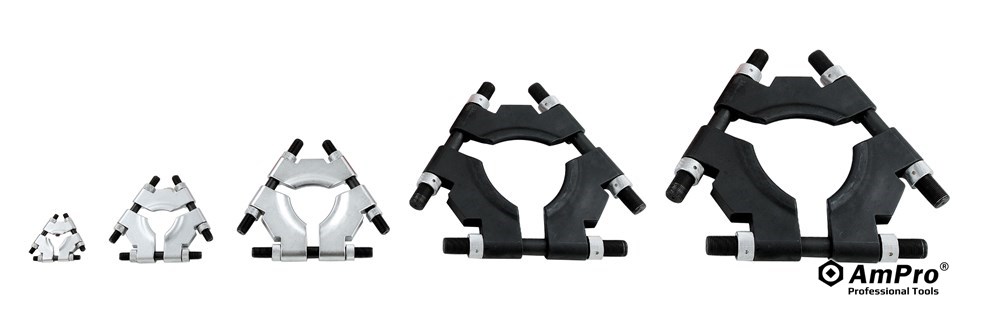

TRI-SECTION PULLER PLATE
Model: T74330-T74334
Model #
T74330 TRI-SECTION PULLER PLATE
/Quotation/AddToQuote?productModelNo=T74330
T74331 TRI-SECTION PULL PLATE
/Quotation/AddToQuote?productModelNo=T74331
T74332 TRI-SECTION PULL PLATE
/Quotation/AddToQuote?productModelNo=T74332
T74333 TRI-SECTION PULL PLATE
/Quotation/AddToQuote?productModelNo=T74333
T74334 TRI-SECTION PULL PLATE
/Quotation/AddToQuote?productModelNo=T74334
Description TRI-SECTION PULLER PLATE
Features · THE FIRST TRISECTION PULLING PLATE ESPECIALLY DESIGNED FOR USE IN COMBINATION WITH THREE-ARMED PULLERS IN THE WORLD. · THE TRISECTION CONSTRUCTION DIVIDES FORCE EQUALLY AND MINIMIZES SHEARING FORCE. · THE FIRM GRIP BEHIND THE BEARING’S INNER RING ENSURES THAT THE PULLING FORCES ARE ONLY TRANSMITTED THROUGH THE INNER RING AND NOT THROUGH THE OUTER RING OR THE ROLLING ELEMENTS, PREVENTING BEARING DAMAGE. · SPECIAL WEDGE SHAPE DESIGN ALLOWS THE PLATES TO BE EASILY INSERTED BETWEEN THE BEARING AND THE SHOULDER ON THE SHAFT. · AVAILABLE FOR BEARINGS, TRIANGLE PULLEYS, GEARS AND SO ON. AVAILABLE IN A WIDE RANGE, COVERING THE MOST COMMON SHAFT SIZES.
Category TRI-SECTION PULLER PLATE
Specification
ModelSpreadTonsLength Ø T/(mm)Net WeightGross Weight
(mm)(mm)(mm)(kg)(kg)
T7433012-50488M100.430.5
T7433126-1004 - 12154M162.272.6
T7433250-1608 - 20 228M226.076.6
T7433390-26025 -40 344M3219.430.9
T74334140-38025 - 50482M4448.2158.5
